ABOUT THIS PRODUCT

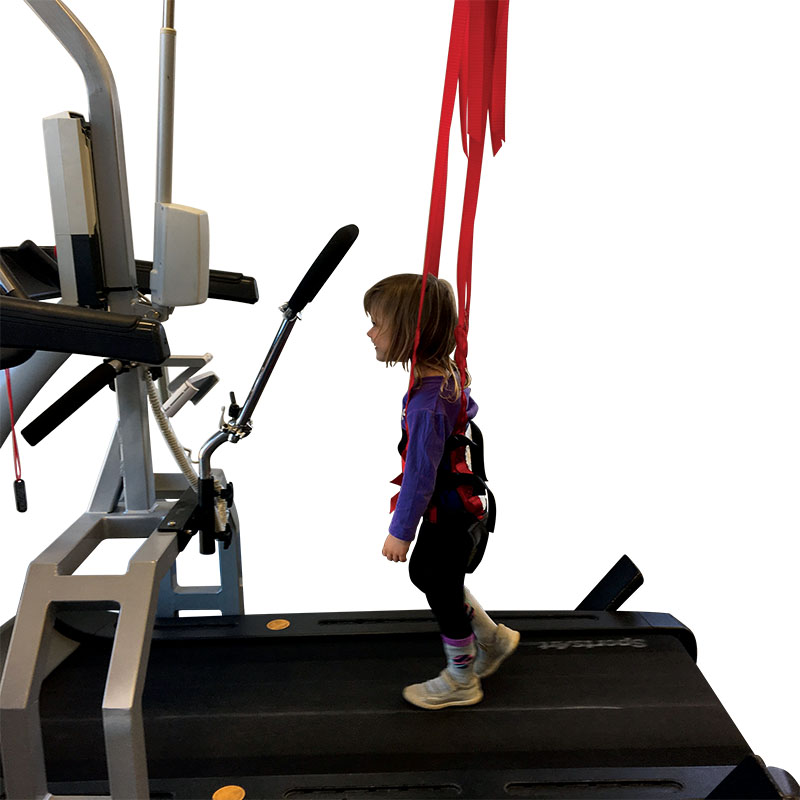

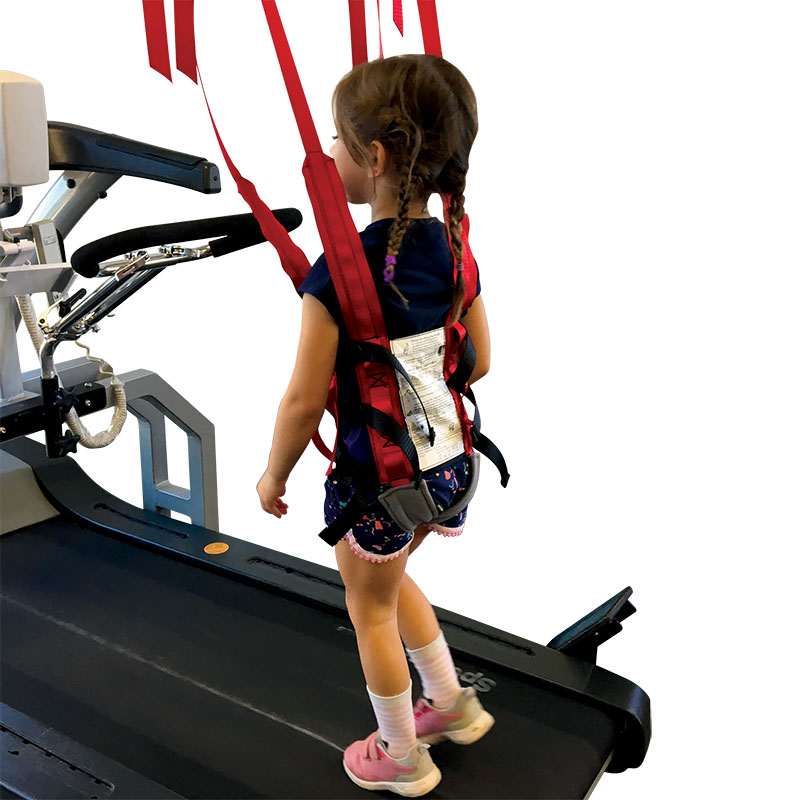

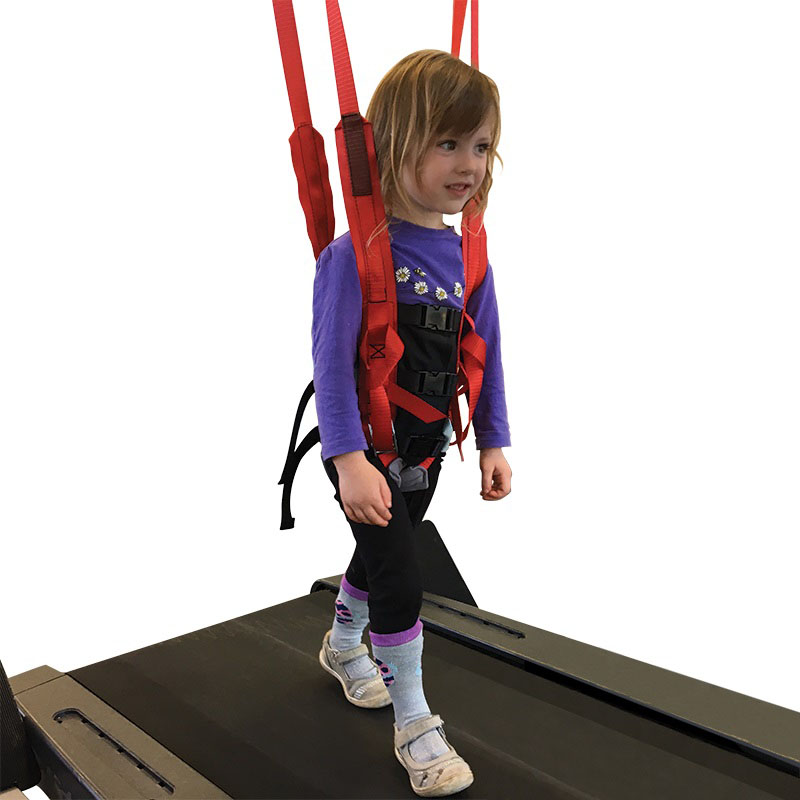

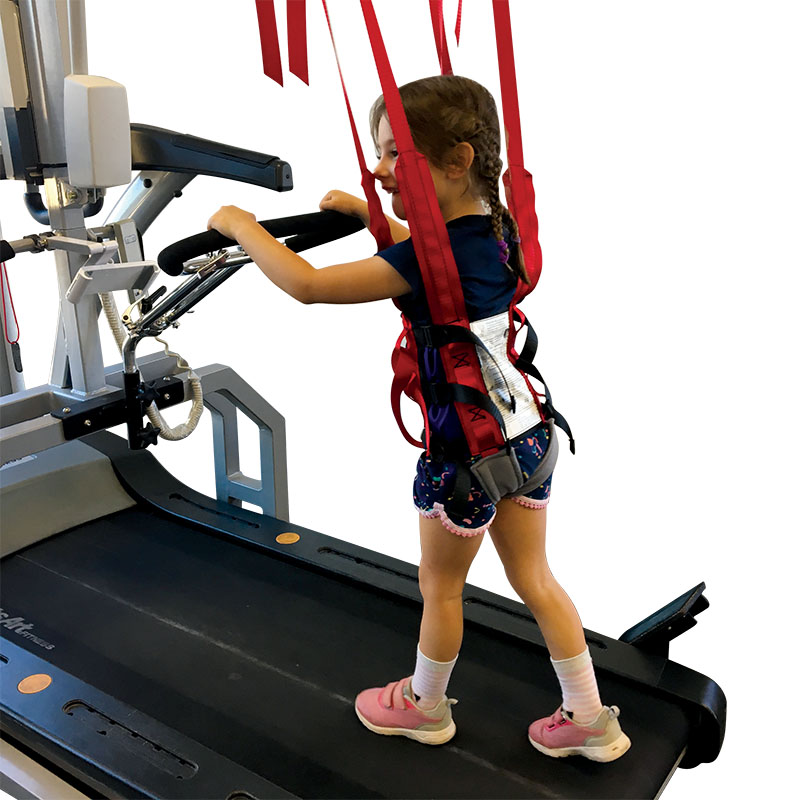

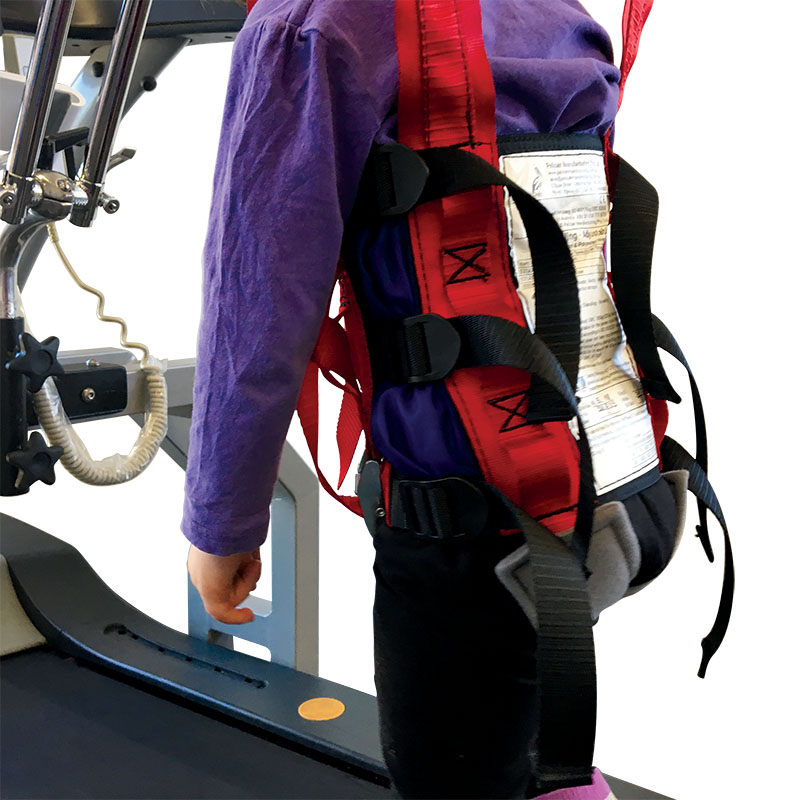

The Walking Sling – Adjustable is designed to be clinically fitted and safely used by an experienced therapist. This sling is used for walking rehabilitation for children.
The main advantage of the Walking Sling – Adjustable is the adjustable straps. These allow the straps to be quickly and easily tightened or loosened while the child is standing.
Features:

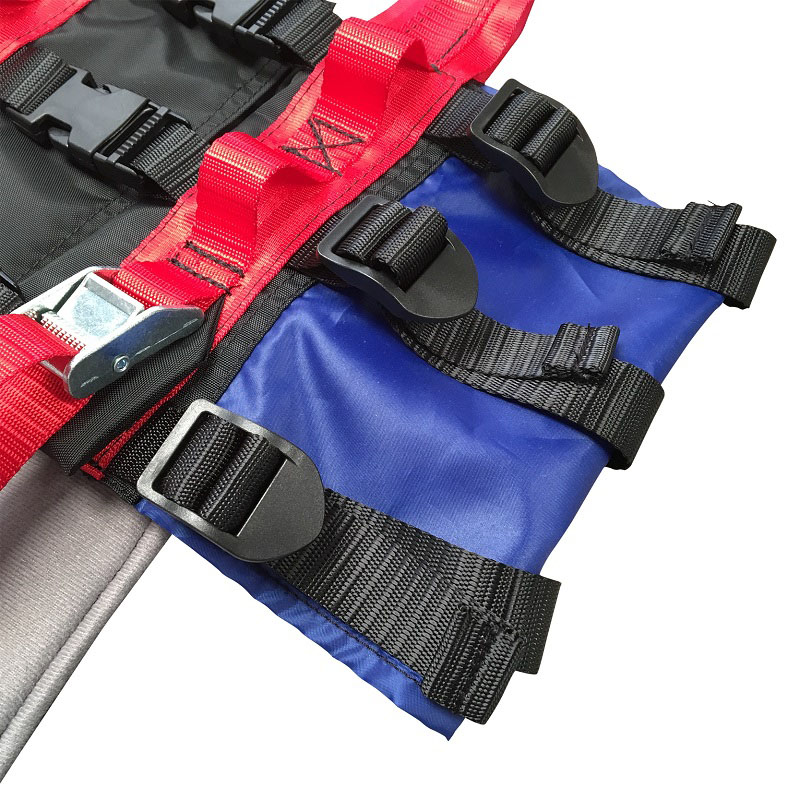

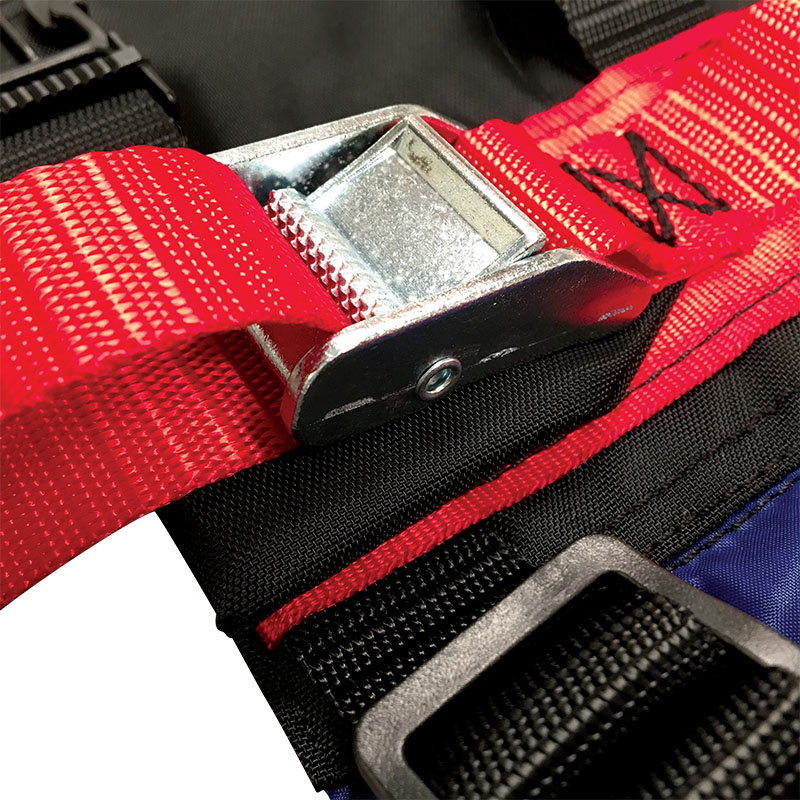

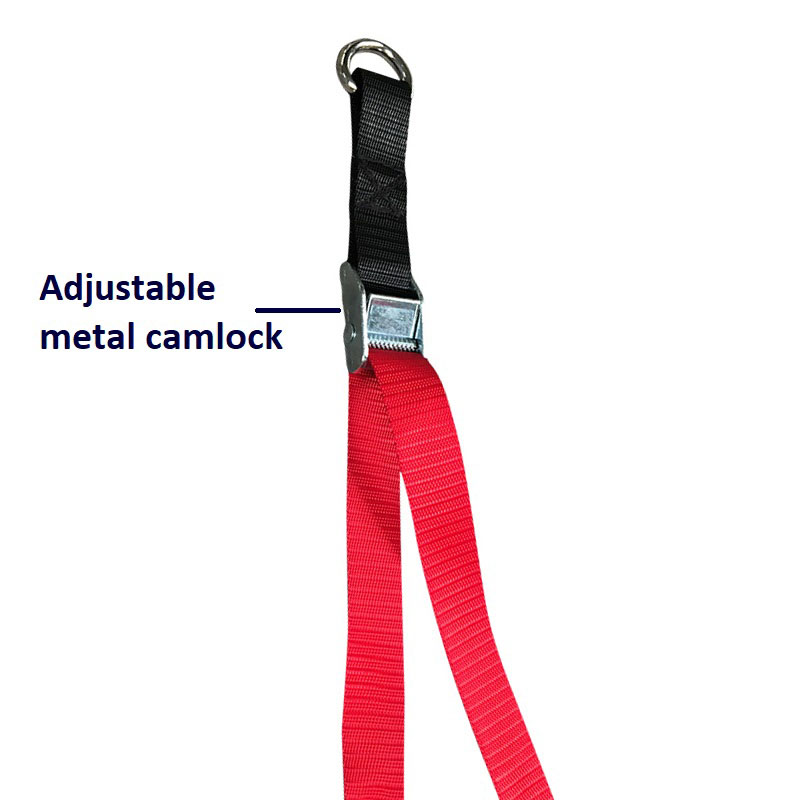

- Adjustable hoist straps and leg straps with heavy-duty metal camlocks – allowing straps to pass through, be tightened, and locked
- Wide webbing straps for extra comfort against the chest and back

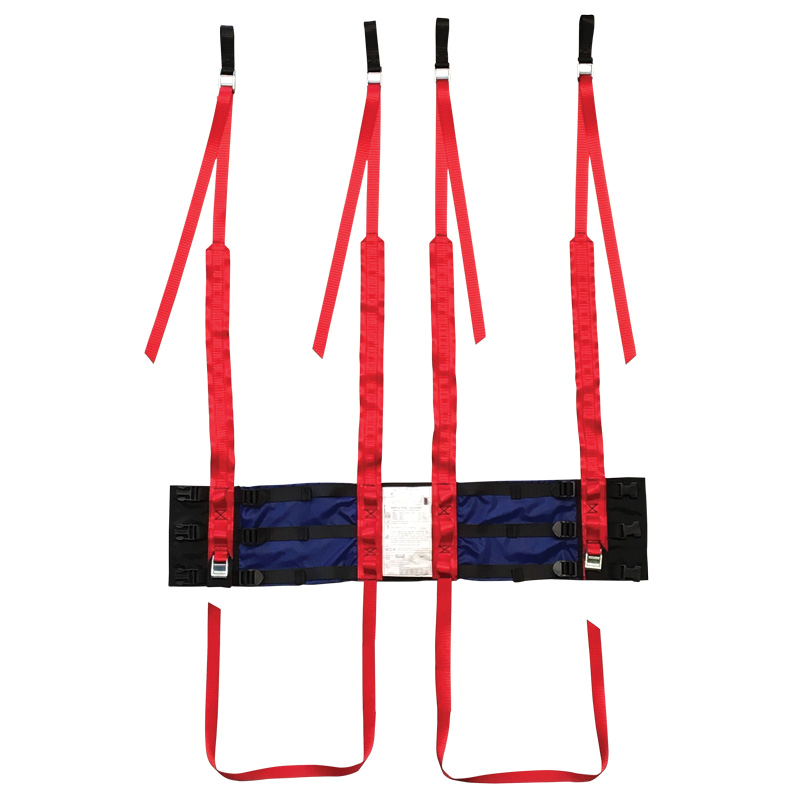

- Three adjustable straps to ensure a snug fit

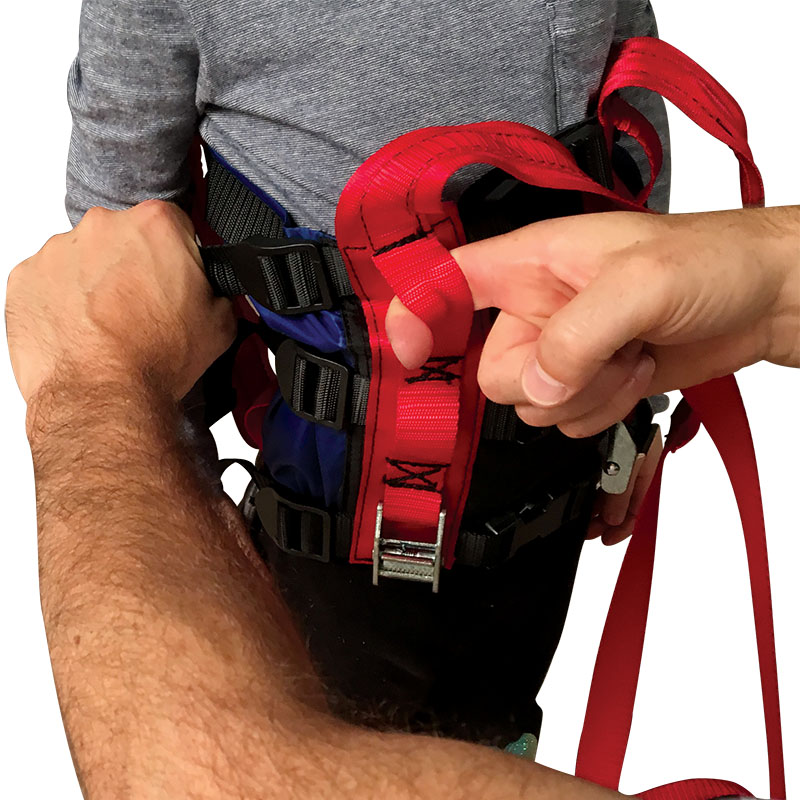

- Finger loops to assist with tightening the side straps
- Adjustable webbing leg straps with an optional Padded Sleeve Set available (sold separately)
- Extra padding under metal camlocks for each leg strap

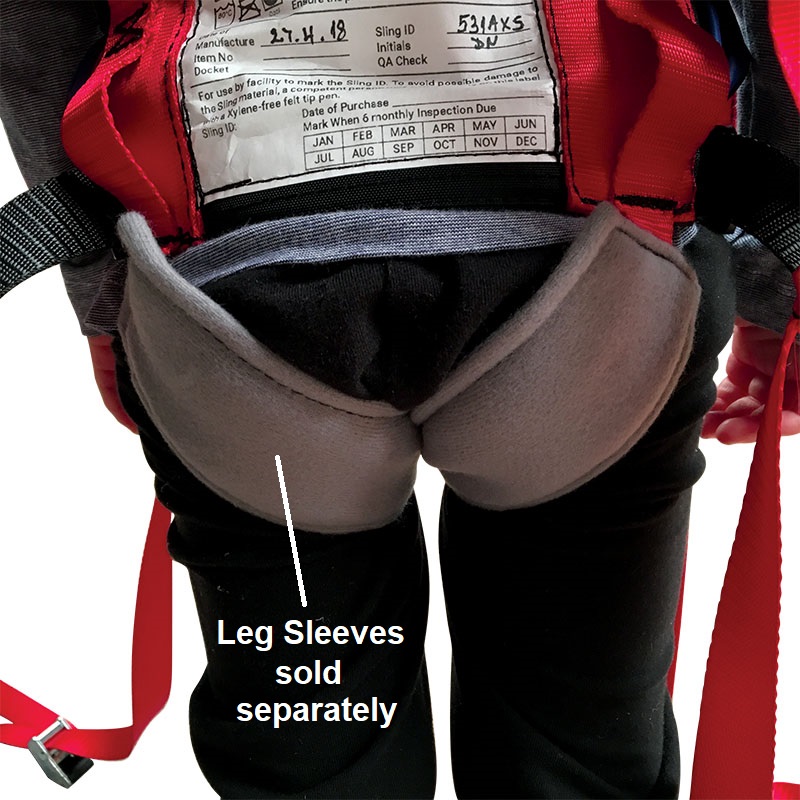

Note: We highly recommend also ordering the Padded Sleeve Set (sold separately). This is a set of three pads of different lengths which slide over the Walking Sling webbing leg straps. This provides extra padding and comfort. The reason the padding is not built into the sling is that therapists often require flexibility in placement.
An alternative product is the Walking Sling with Webbing Loops.
Click here to view the full range of Hoist Slings.
WHO SHOULD USE THIS PRODUCT?
This product is suitable for children undergoing walking rehabilitation and exercise.
HOW TO USE THIS PRODUCT
Warning: A suitably qualified person with sling and hoist experience should confirm that this sling’s attachments are compatible with the lifting hoist and that the sling will lift safely and correctly. Use this product under supervision to ensure safety.
PRODUCT MATERIALS
Webbing, metal clips, plastic buckles, hook & loop tape.
STOCK KEEPING UNIT (SKU), SIZE, WEIGHT, GLOBAL TRADE ITEM NUMBER (GTIN)
| SKU |
SIZE |
COLOR SWATCH ON strap |
APPROX WAIST SIZE (CM) |
APPROX WAIST SIZE (INCHES) |
GTIN |
| 531AXS |
X Small |
Brown |
40m – 58cm |
16″ – 23″9349145004582 |
|
| 531AS |
Small |
Red |
45cm – 85cm |
18″ – 33″ |
9349145004551 |
| 531AM |
Medium |
Yellow |
55cm -105cm |
22″ – 41″ |
9349145004575 |
GLOBAL MEDICAL DEVICE NUMBER (GMDN)
40535
SAFE WORKING LOAD (SWL)
SWL 100kg / 220lbs (In accordance with ISO 10535:2011)
Note: The SWL was tested according to ISO 10535:2011 which requires a static test, and does not have requirements for spikes in weight which may occur with a Walking Sling. It is the user’s or carer’s responsibility to ensure the Sling is used safely, considering a static SWL of 100kg / 220lbs.
ATTACHMENT METHOD

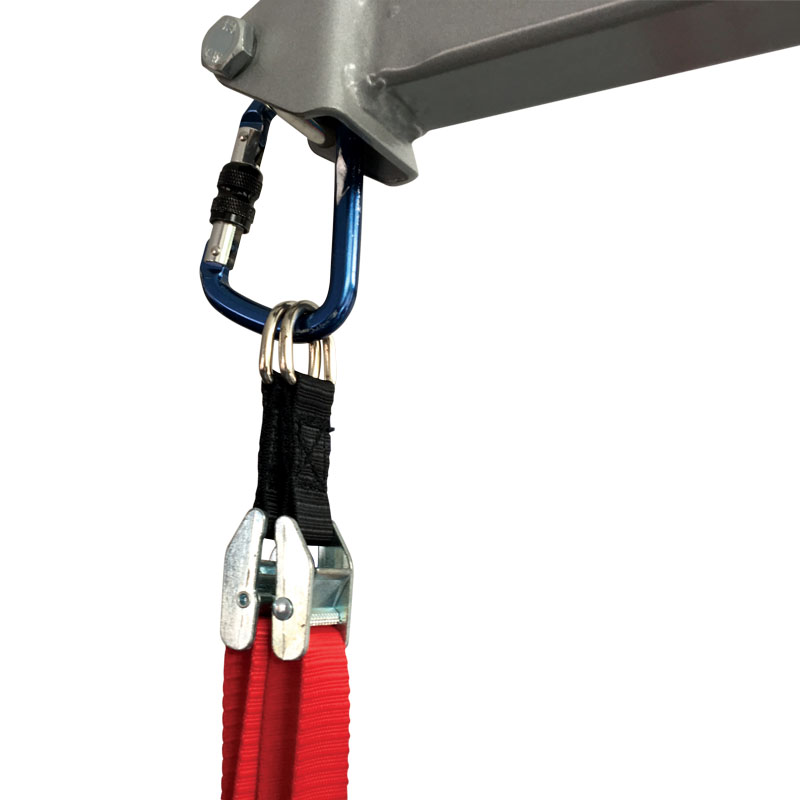

Metal hook Coat Hanger Hoist using accessory connector straps
MATERIALS AVAILABLE
| material |
Photo |
Type |
Notes |
| Standard |
 |
Nylon |
This is called a solid material, as it is not a Mesh or Netting material that has holes in the material. The nylon has some slipperiness, to make it easier to slide down behind a patient’s back, when they are sitting in a chair. |
WARNINGS
- This product contains heavy duty metal camlocks, which may damage a washing machine or tumble drier.
- Excessive Chlorine/Bleach can damage any material, including Sling material. Slings should be continuously inspected for deterioration and discoloration, as this may be an early warning of possible failure.
CLEANING METHOD – SEWN VERSION
Machine or hand wash .We recommend using a Pelican Washing Bag to help contain the product.
MAXIMUM WASHING TEMPERATURE
80°C / 176°F.
DETERGENT
Use a mild detergent. Do not use fabric softener. Fabric softener and excessive chlorine or bleach can damage any material, including Sling material. Slings should be continuously inspected for deterioration and discoloration, as this may be an early warning of possible failure.
DRYING METHOD
Air dry in the shade. Alternatively, tumble dry on a cool temperature and make sure the drum is cool.
CLEANING WARNING
Only use and store the product when it is dry.
General Manual Handling Warning: Manual Handling products are designed to assist carers to help patients. They will not make the carer stronger or fitter, but with correct training and use of the products, should make manual handling easier and safer for both staff and patients. When training, practice with an able-bodied colleague. If any procedure is not comfortable or is difficult and puts the carer or patient in a dangerous position, the participants should call out to stop the maneuver, recover and recommence. Never jeopardize your health by straining, twisting or being incorrectly positioned when manual handling. Always select the most appropriate equipment for the patient’s current condition and if in doubt, use mechanical equipment. Ask your Manual Handling adviser for individual guidance.
Correct Buckle Threading: Click here to view a video showing the correct way to thread a buckle onto the webbing. It is vital that the buckles on this product are correctly fitted. Contact us if you need to order a replacement buckle if one is broken.
Attaching Brand New Keyhole Plate Slings to a Hoist: View our video guidance here.
General Keyhole Plate Sling Information: Click here for general information, including filing down Keyhole Plates which are too tight. This advice is applicable for the version of this product which uses Keyhole Plates.
Warning: Inspect slings before every use. If any damage is found the Sling must be withdrawn from service and repaired, if possible.
Disposal: When the Sling is ready for disposal, we suggest the Lifting straps are cut off, so it cannot be used with another patient.
Sling & Hoist Compatibility: Click here for more information.
Sling Life Expectancy: Click here for more information.
What the International Standard ISO10535:2011 requires for Period Sling Inspections and Sling Labelling: Click here for more information.
Sling Inspection Before Use Checklist: Click here to download.
6 Monthly Thorough Sling Inspection Checklist: Click here to download.
Online Sling Inspection Training: For excellent guidance on how to do inspections, check out this course on the Udemy learning platform. On completion of the course you will receive a certificate, which makes staff education simple. This training is in addition to the training offered by your organization. The course covers:
- How the do a Sling Inspection Before Use
- How to do a 6 Monthly Thorough Sling Inspection
- What the labelling requirements are
- Example of sling damage
- How to safely mark a sling
Do I need to do Sling inspections?
Yes – See the Important Information tab for more information.
What are the Sling inspection requirements?
See the Important Information tab for more information. We’ve paraphrased the International Standard 10535:2011 under license, detailing exactly what is required.
Where can I find the inspection checklists?
See the Important Information tab for more information. We provide the following checklists:
- Sling Inspection Before Use
- 6 Monthly Thorough Sling Inspection
